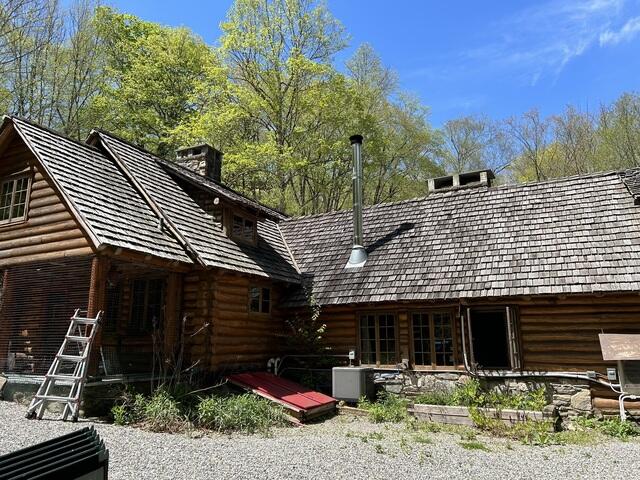

The Roof Before
Here's a look at Mary's cabin roof before the replacement. Click through to see the transformation of both the main home and garage.

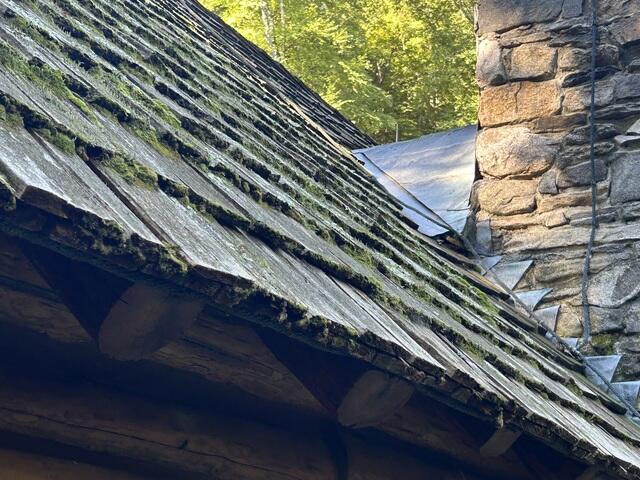

Before: Moss Growth
A closer look at the original cedar shake roofing shows significant moss growth, which is common with this material over time. Deterioration was also visible around the chimney flashing, compromising the roof's ability to properly shed water.

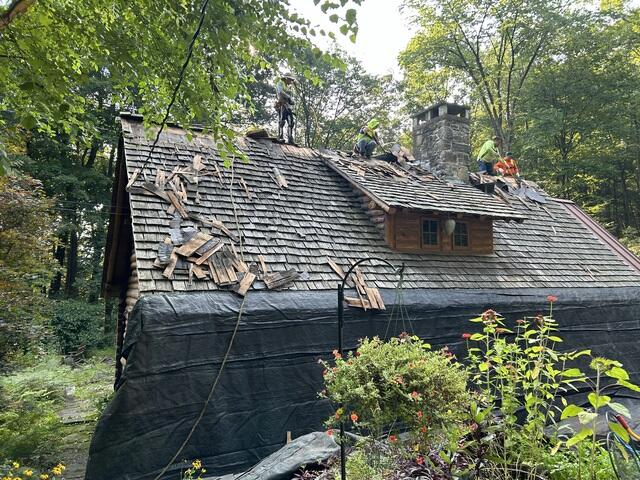

The Teardown Begins
The project began with a complete removal of the existing roofing materials. Beneath the old shakes is the roof decking, which serves as the structural foundation of the roofing system.

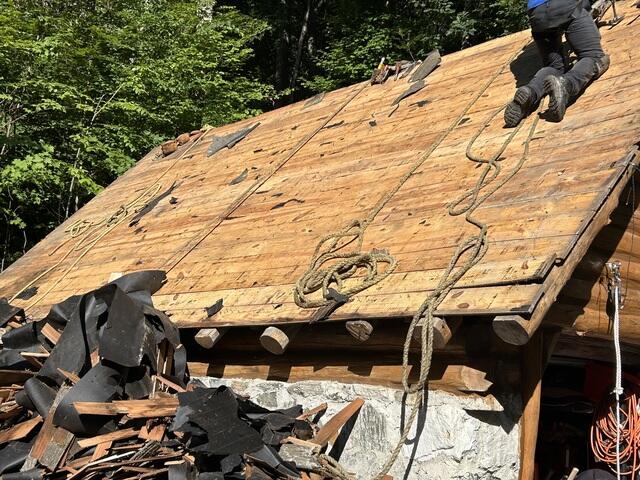

The Decking Is Examined
As the structural base of the roof, the decking was carefully inspected for any signs of rot, mold, or deterioration. Any compromised sections were removed to prepare for structural reinforcement.

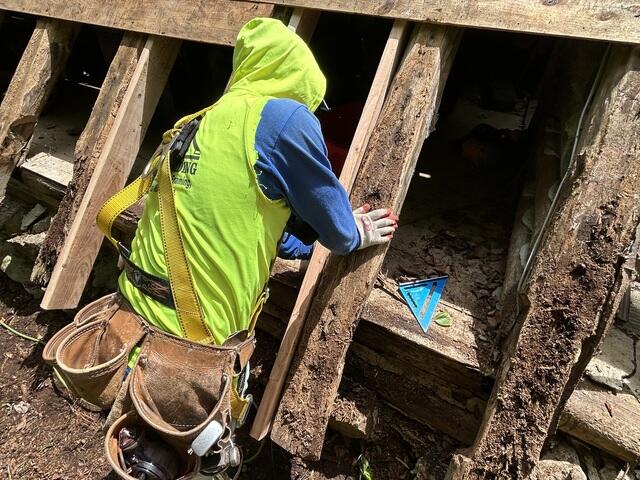

Sistering Rafters
During the inspection, some roof rafters were found to be weakened. To restore strength, the crew reinforced them using a technique called rafter sistering, where new lumber is installed alongside existing rafters for added support.

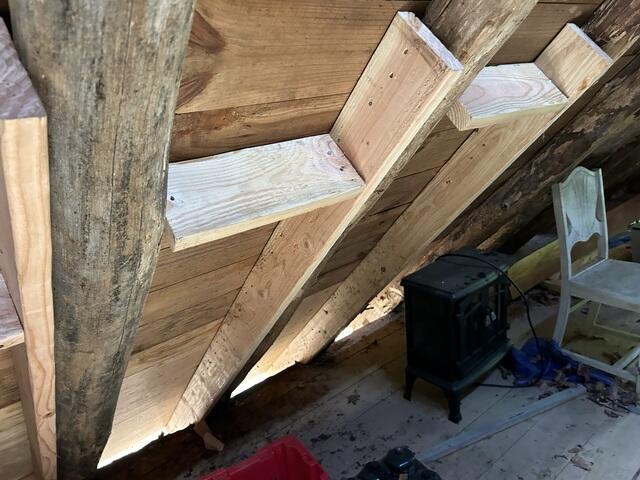

Additional Framing Support
Additional framing members were installed between rafters to further stabilize the roof structure and ensure it was properly prepared for the new roofing system.

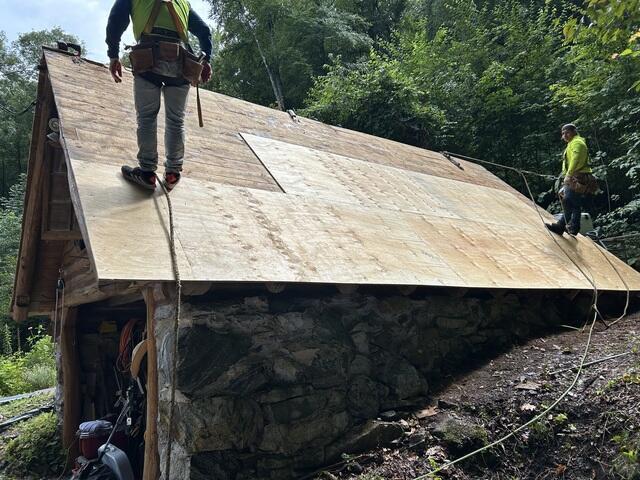

New Plywood Is Installed
All removed sections were replaced with brand-new CDX plywood, creating a strong, stable base for the new roof.

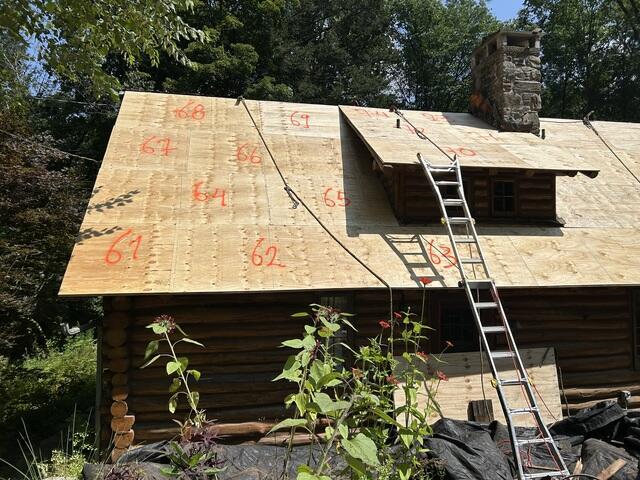

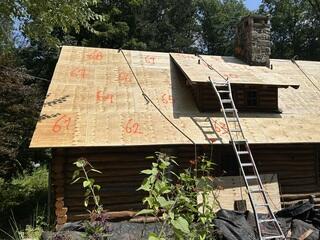

Plywood Is Numbered
Each new sheet of plywood was documented to accurately track materials used throughout the project and provide transparency for the homeowner.

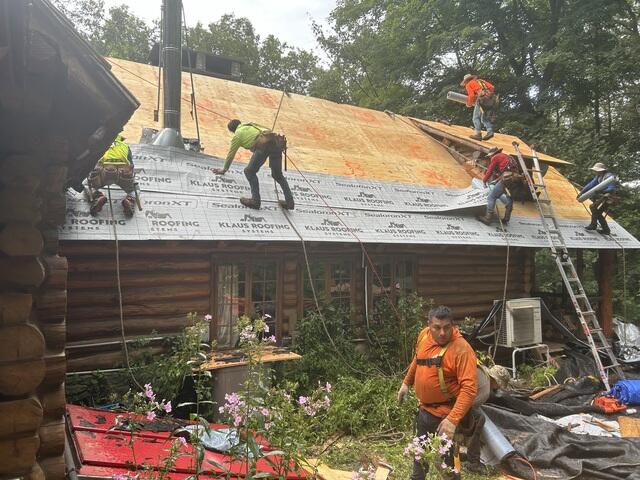

Ice and Water Shield Is Installed
Ice and water shield membrane was applied directly to the roof decking, providing a waterproof barrier designed to protect against rain, snow, and ice intrusion.

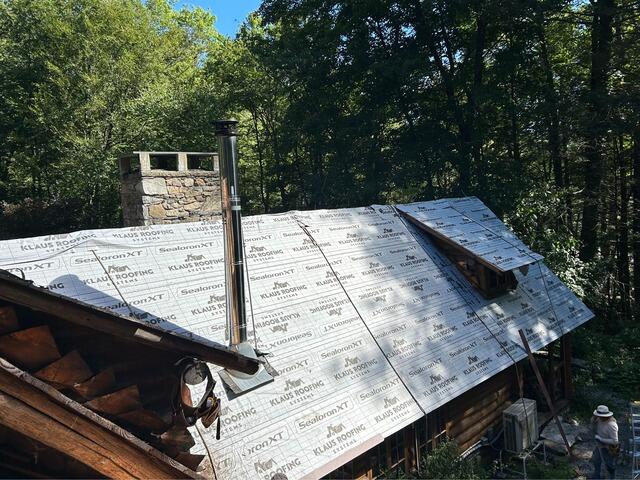

Ready for Metal Panels
With the moisture protection in place, the roof was fully prepped and ready for the installation of the new roofing system.
Metal Panelling Is Installed
Mary selected ProVia standing seam metal roofing in the color Antique. This system features concealed fasteners and raised seams for superior durability, weather resistance, and a clean, architectural appearance.

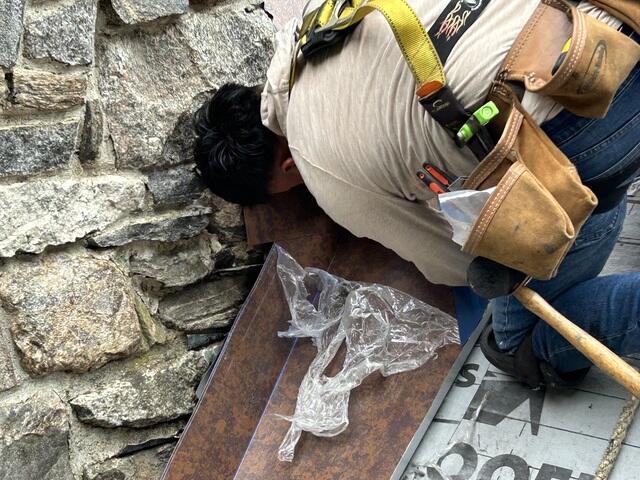

New Flashing for the Chimney
New flashing was installed where the chimney meets the roof, creating a watertight seal and directing water safely away from the structure.

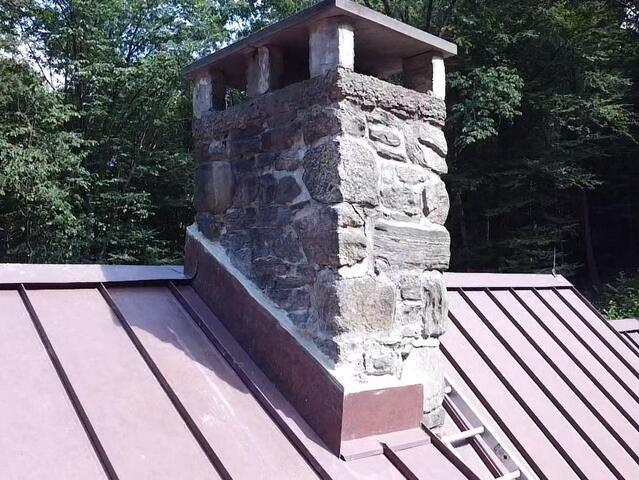

Beautifully Sealed Flashing
A close-up view of the completed chimney flashing shows a clean, seamless finish that complements the new metal roofing.

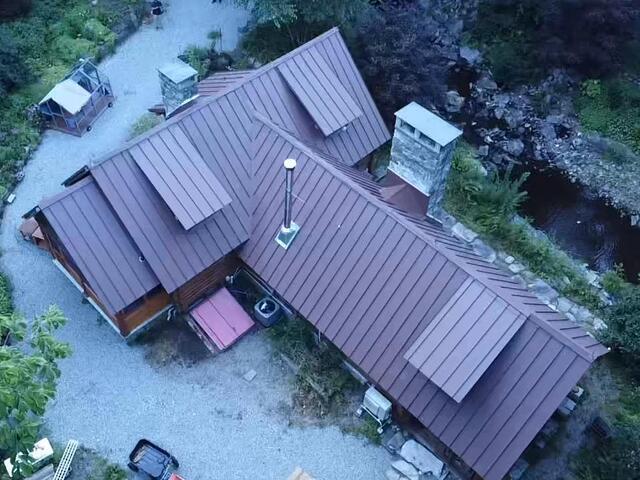

The Roof After
After final detailing and a thorough cleanup of the property, Mary's new standing seam metal roof was complete, enhancing the beauty, durability, and character of her cabin home and garage.
