Roof Replacement Photo Album: Preparing a Roof for Solar in Guilford, CT

Guilford, CT, homeowner Klaus contacted Brown Roofing after learning his 22-year-old roof needed to be replaced before installing a new solar system. Inspector Mark conducted a thorough roof inspection, confirming the roof had reached the end of its service life and evaluating the condition of the underlying decking. Project Manager Carlos and his crew removed the existing shingles and prepared the roof for a modern replacement. The decking was inspected and found to be in good condition, allowing the project to move forward without the need for plywood replacement. Deck tape, ice and water shield, Velora One synthetic underlayment, and metal edging were installed to provide reliable moisture protection. The project was completed with IKO Dynasty architectural shingles in Castle Gray, along with ridge ventilation and new pipe boot flashings, resulting in a clean, durable roofing system ready for solar installation. Brown Won't Let You Down!

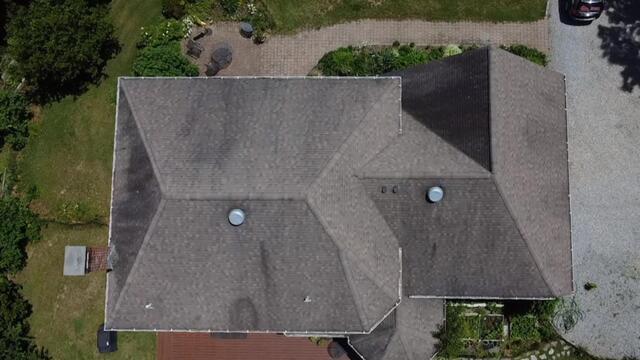

The Roof Before

Here's what Klaus's roof looked like before his roof replacement. Swipe through to see the transformation.

The Teardown Begins

The project began with a complete removal of the old shingles. Protective tarps were installed around the home to safeguard the property and ensure a clean, efficient worksite throughout the process.

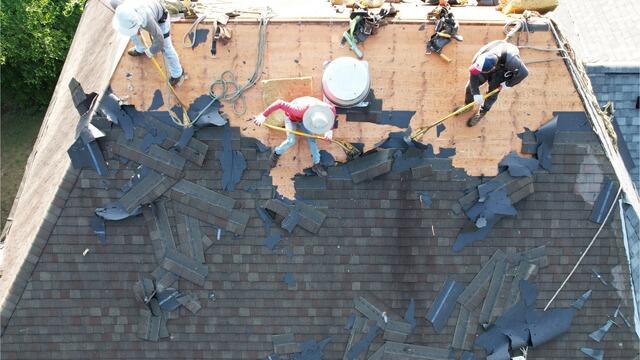

The Decking Is Exposed

Beneath the shingles is the plywood roof decking (sheathing), which serves as the structural foundation of the roofing system.

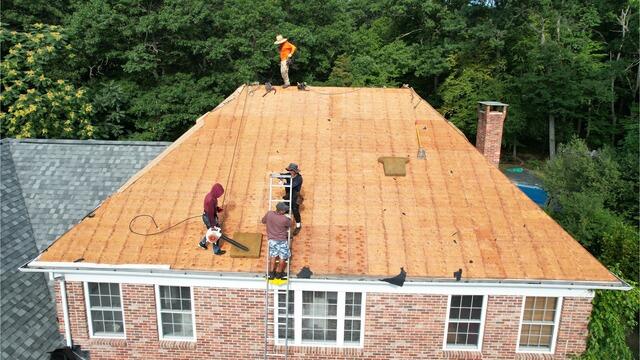

The Decking Is Examined

As the structural base of the roof, the decking was thoroughly inspected for signs of rot, mold, or deterioration. In this case, the decking was found to be in good condition and did not require replacement.

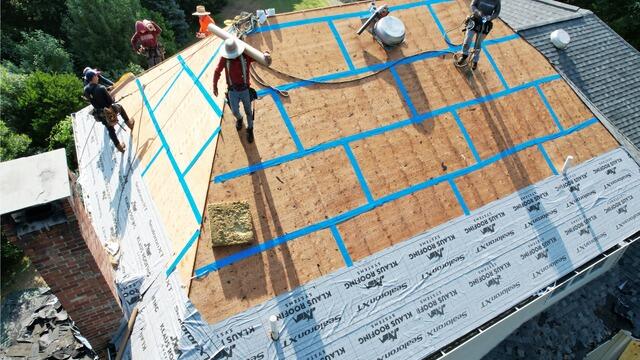

Seams Are Taped and Ice and Water Shield Is Installed

All plywood seams were sealed with all-weather deck tape to meet current building codes. Ice and water shield was installed along the eaves, valleys, and around all roof penetrations for critical leak protection.

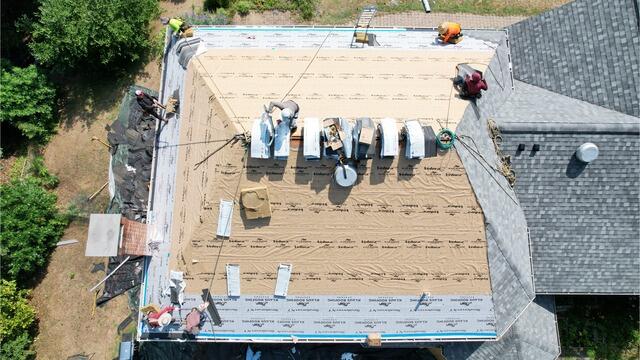

Underlayment Is Installed

The remaining roof surface was covered with Velora One synthetic underlayment, providing a breathable, water-resistant barrier. Drip edge and rake metal were then installed to guide water away from the fascia and into the gutter system.

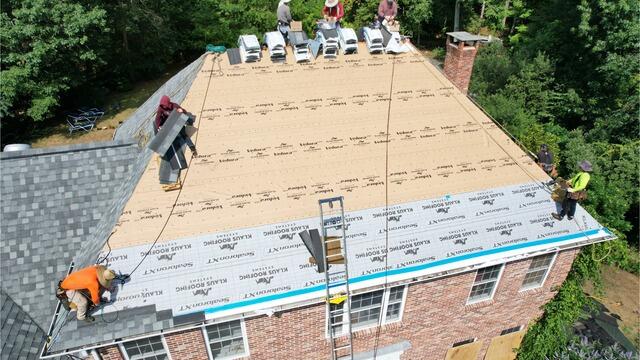

New Shingles Are Installed

For his new roof, Klaus selected IKO Dynasty architectural shingles in Castle Gray. These Impact 3-rated shingles offer enhanced durability and are backed by our 50-year warranty.

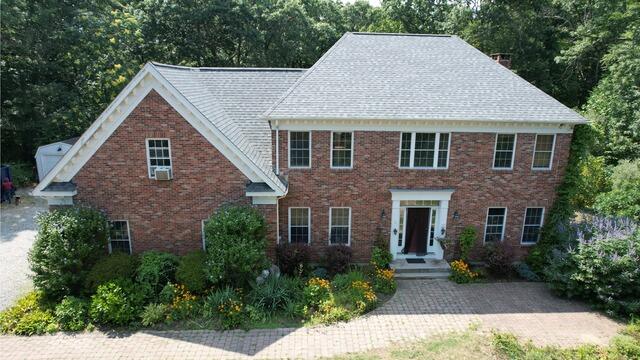

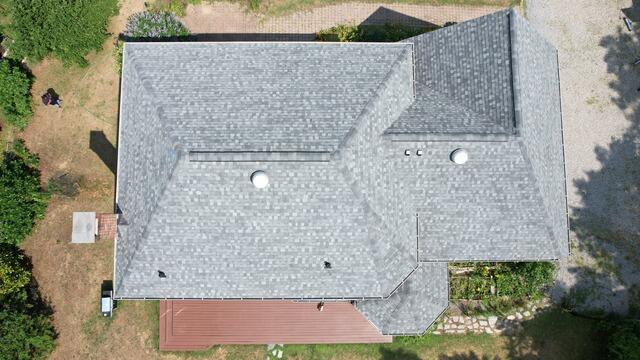

The Roof After

Ridge vents and new pipe boot flashings were installed to improve airflow and ensure watertight seals at roof penetrations. After final detailing and a complete property cleanup, Klaus's roof replacement was complete.
