Roof Replacement Photo Album: From Skip Sheathing to Solid Decking in Milford, CT

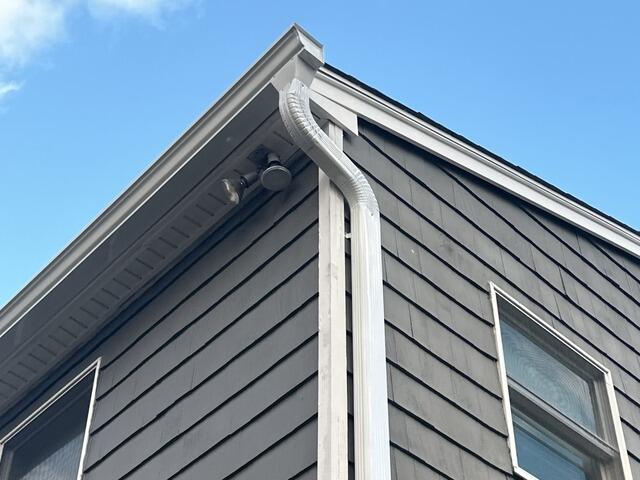

Milford, CT homeowner Mike contacted Brown Roofing for a full roof replacement to upgrade the structure and performance of his home. Inspector Geoff went out and discovered that Mike's roof featured original skip sheathing (wood lath decking), which was common in older construction but not suitable for modern architectural shingles. Project Manager Noel and his crew removed the existing materials and installed new CDX plywood across the entire roof to create a solid, code-compliant foundation. All seams were sealed with deck tape, ice and water shield was installed in critical areas, and Velora One synthetic underlayment was applied for comprehensive moisture protection. The project was completed with IKO Dynasty architectural shingles in Summit Gray, providing Impact 3-rated durability backed by our 50-year warranty. New 6-inch white gutters with wide-mouth outlets were installed to complete the system and improve water management, fully protecting the exterior of Mike's house for the long haul. Brown Won't Let You Down!

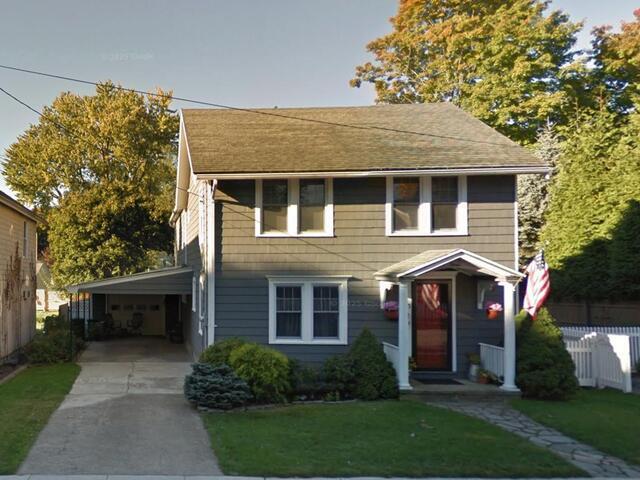

The Roof Before

Here's what Mike's roof looked like before his roof replacement. Click through to see the transformation.

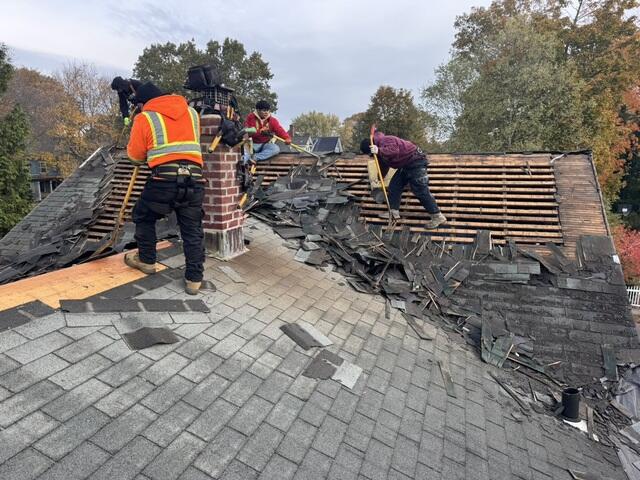

The Teardown Begins

The project began with a complete removal of the old shingles, exposing the roof decking beneath, which serves as the structural foundation of the roofing system.

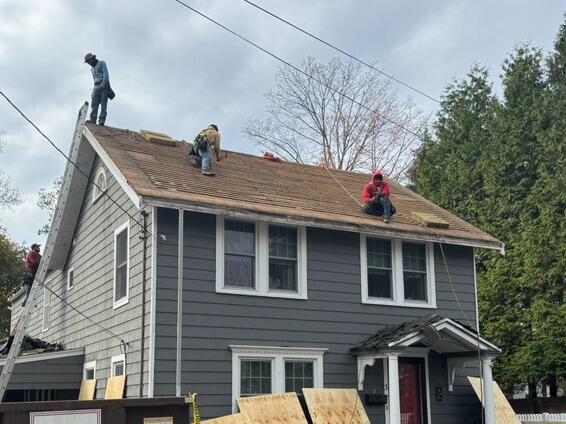

Time for New Decking

Mike's home featured original wood lath decking, also known as skip sheathing. While this construction was common years ago with lighter roofing materials, modern architectural shingles require a solid decking surface for proper support and performance.

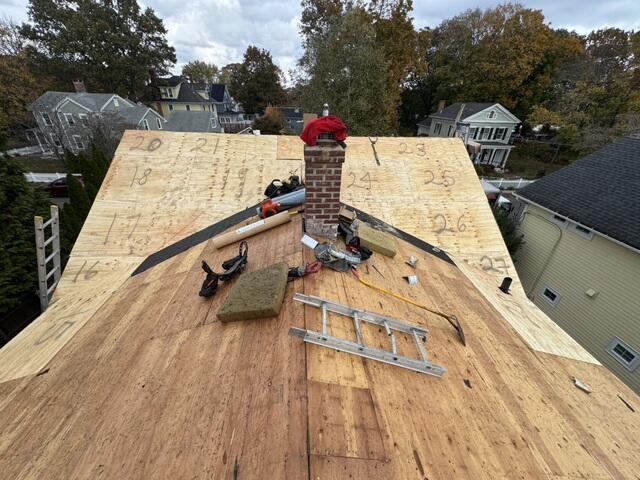

New Plywood Is Installed

New CDX plywood was installed over the entire roof, creating a strong, stable base for the new roofing system. Each sheet was documented for accurate material tracking and transparency with the homeowner.

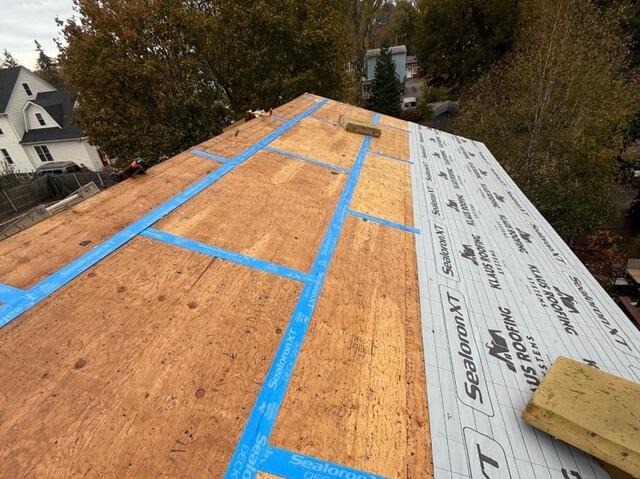

Seams Are Taped and Ice and Water Shield Is Installed

All plywood seams were sealed with all-weather deck tape to meet current building codes. Ice and water shield was installed along the eaves, valleys, and around all roof penetrations for critical leak protection.

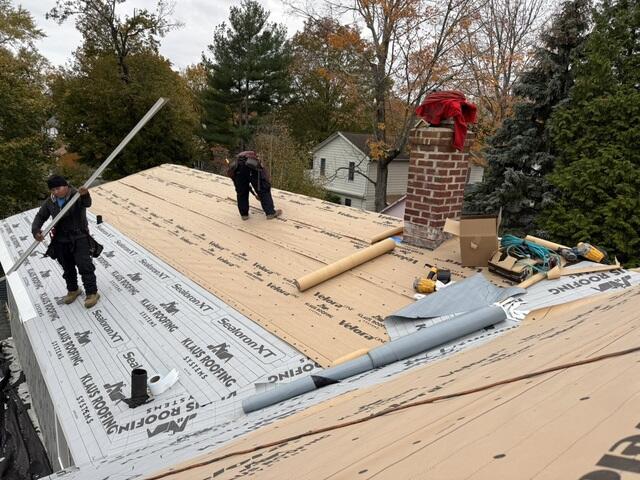

Underlayment Completed & Drip Edge Flashing Installed

The remaining roof surface was covered with Velora One synthetic underlayment, providing a breathable, water-resistant barrier. Drip edge and rake metal were then installed to guide water away from the fascia and into the gutter system.

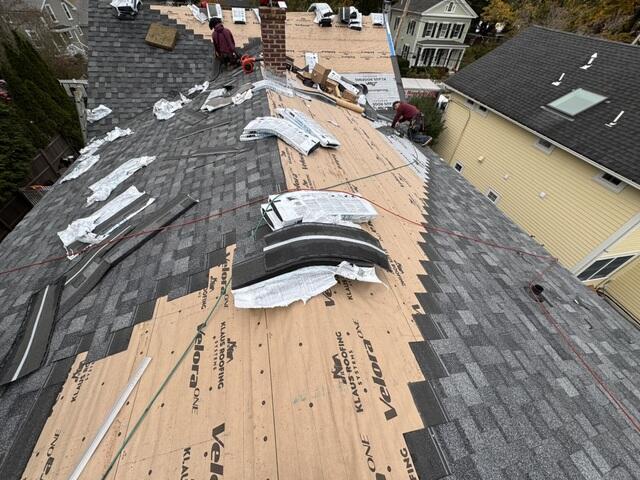

New Shingles Are Installed

For his new roof, Mike selected IKO Dynasty architectural shingles in Summit Gray. These Impact 3-rated shingles deliver enhanced durability and are backed by our 50-year warranty.

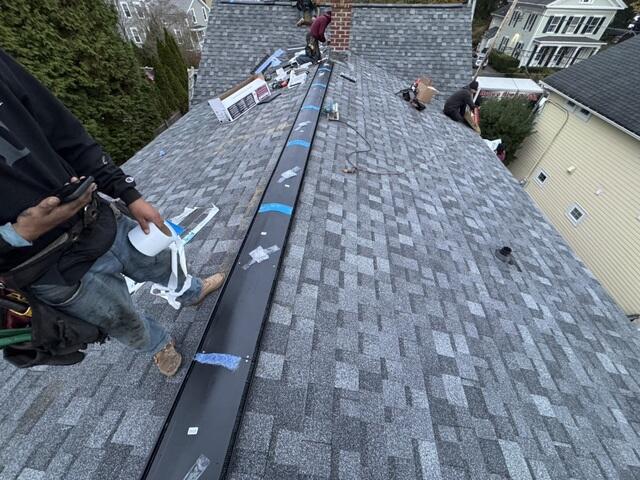

Ridge Vent Is Installed

8A ridge vent was installed to allow hot, humid air to escape from the attic, helping reduce moisture buildup and improve overall roof performance.

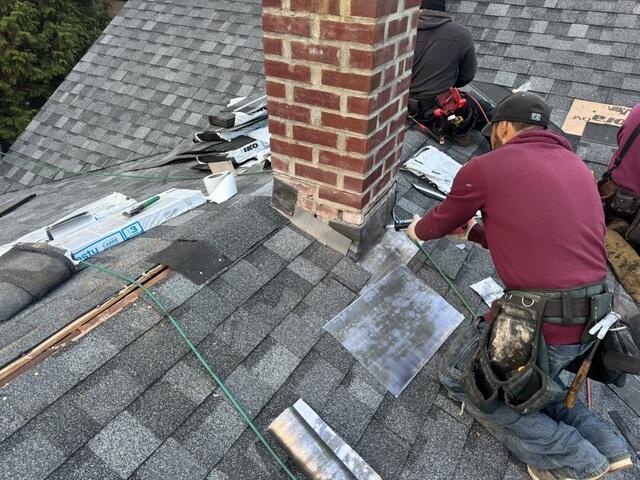

New Flashing Is Installed on the Chimney

New flashing was installed where the chimney meets the roof, creating a watertight seal that directs water away from the junction and helps prevent future leaks.

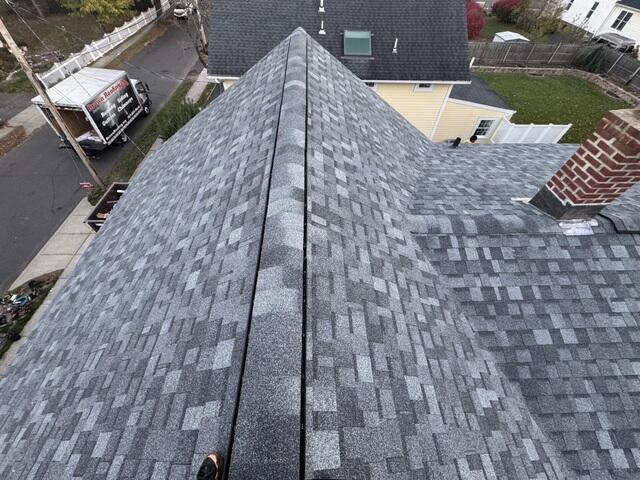

The Finishing Touches

After final detailing and a complete property cleanup, Mike's roof replacement was complete. This rooftop view highlights the clean lines and professional installation.
