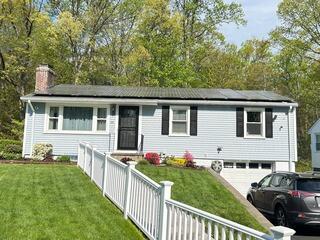

New Haven Ranch Before Roof Replacement
Henry and Connie's ranch-style home is pictured before the roofing project began. Solar panels cover much of the front-facing roof, making the existing shingles difficult to see from this angle.

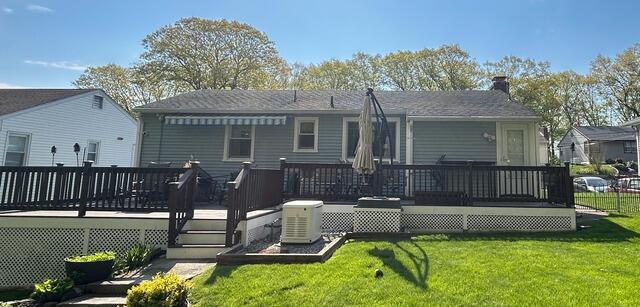

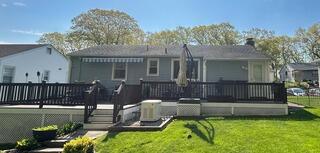

Aging Roof Shingles Before Replacement
A view from the back of the house provides a clearer look at the existing roofing materials. The aging shingles showed visible wear, highlighting the need for a roof replacement.

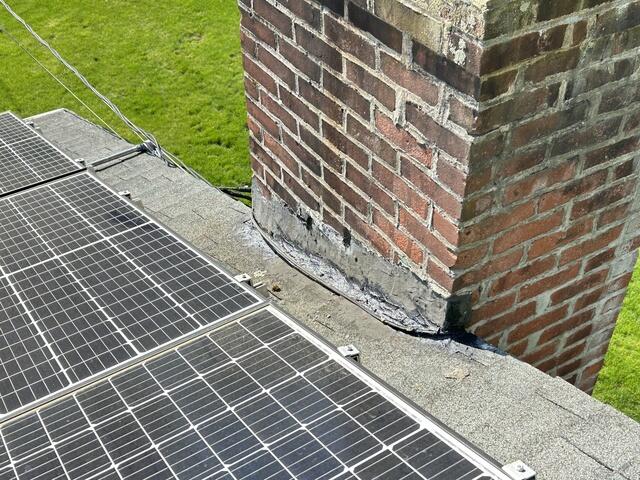

Deteriorated Roof Flashing
A close-up inspection revealed deteriorated flashing around a roof penetration. Properly installed flashing is essential for directing water away from vulnerable areas and helping prevent leaks.

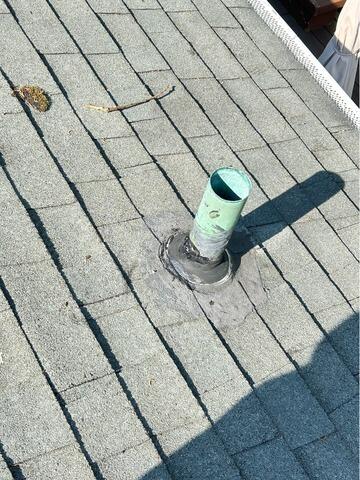

Worn Plumbing Vent Flashing
The existing plumbing vent had deteriorated flashing that left the surrounding roof vulnerable to moisture intrusion. This area would receive an updated pipe flashing system during the replacement.

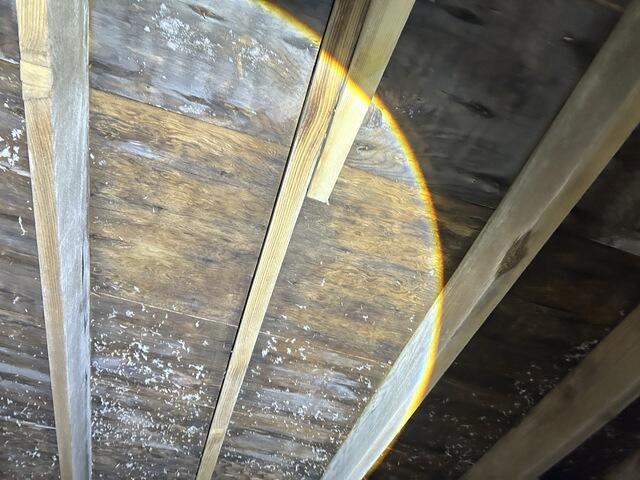

Water Staining Visible in the Attic
An inspection from inside the attic revealed water staining on the underside of the roof decking. Checking the attic helps identify signs of moisture intrusion that may not be visible from the exterior.

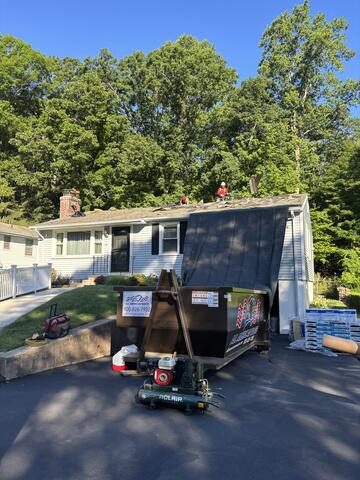

Beginning the Roof Tear-Off
The crew began removing the existing roofing materials to expose the decking underneath. Large protective tarps were positioned around the work area to help collect debris and protect the property during construction.

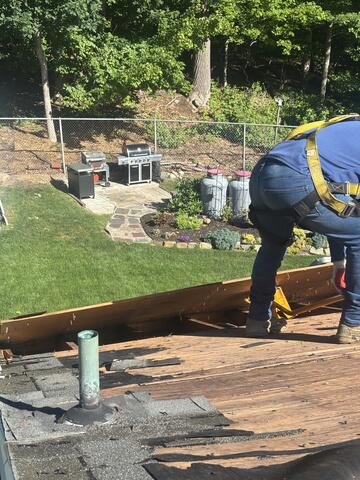

Removing the Existing Roof Decking
After exposing the roof structure, the crew proceeded with removing the existing plywood decking. The full decking replacement would provide a fresh foundation for the new roofing system.

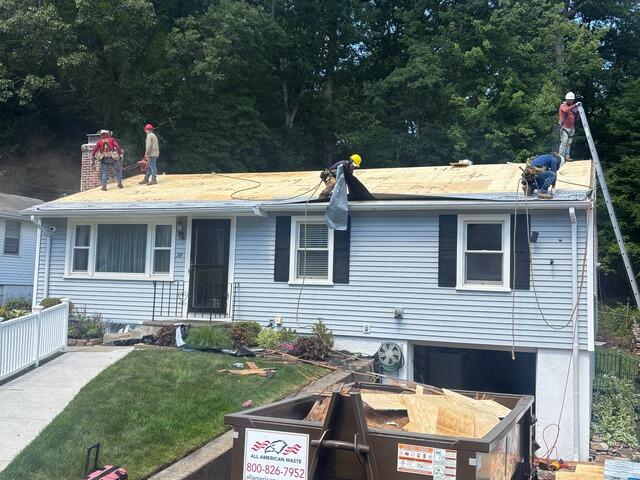

New CDX Plywood Decking Installed
The crew installed new CDX plywood across the roof to replace the deteriorated decking. The new panels provide a strong, stable surface for securing the roofing materials above.

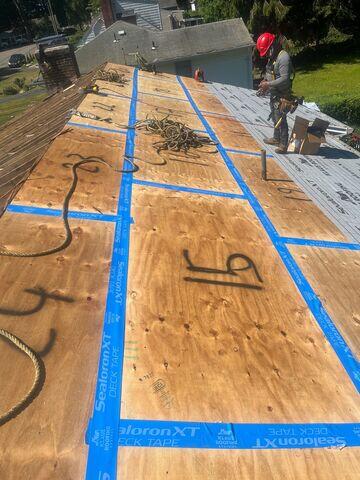

Sealing Decking Seams and Installing Ice and Water Shield
The seams between the new plywood panels were taped, and ice and water shield was installed in vulnerable areas. These protective measures help limit moisture intrusion beneath the finished shingles.

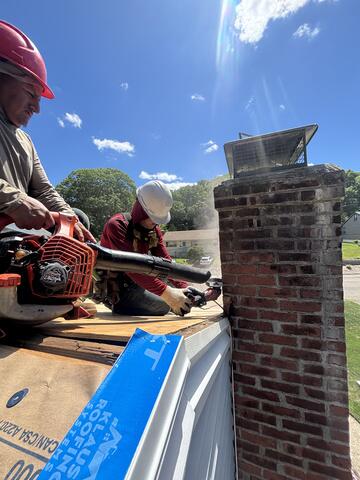

Removing Old Chimney Flashing
The crew removed the deteriorated flashing surrounding the chimney in preparation for its replacement. Proper chimney flashing helps direct water away from the joint between the chimney and the roof.

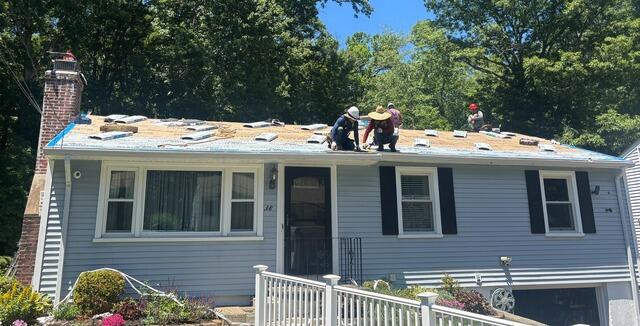

Synthetic Underlayment and Roof Edge Protection
With the new decking in place, the crew installed synthetic underlayment along with drip edge and rake metal. Bundles of shingles were staged on the roof as the installation progressed.

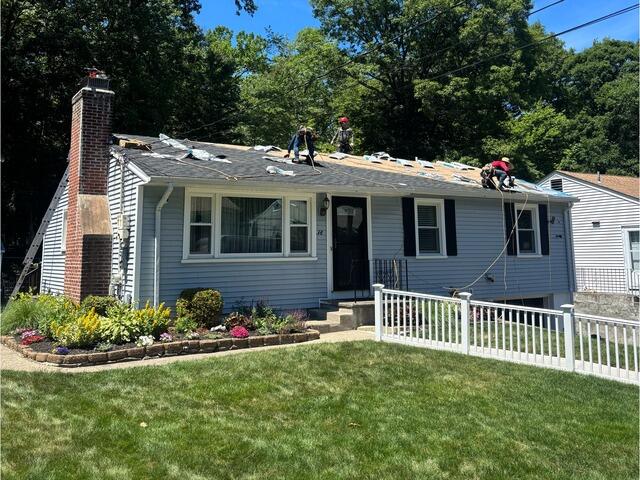

Installing IKO Dynasty Shingles in Granite Black
New IKO Dynasty architectural shingles in Granite Black were installed across the roof. The dark, dimensional shingles give Henry and Connie's home a clean, updated appearance while providing durable weather protection.

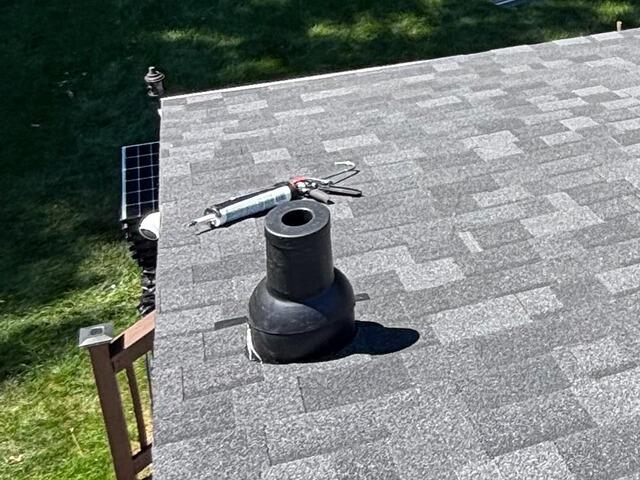

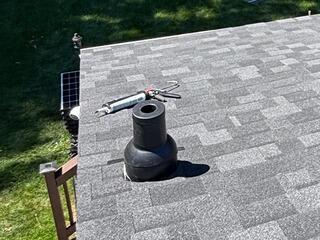

New Perma-Boot Pipe Flashing
A new Perma-Boot system was installed around the plumbing vent pipe. This protective flashing component is designed to help prevent water intrusion at a common trouble spot on residential roofs.

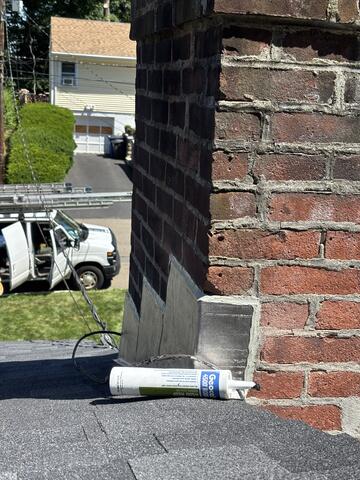

Completed Chimney Flashing Installation
New flashing was installed around the chimney, with sealant applied to the appropriate joints and transitions. These details help protect the area where the chimney meets the roofing system.

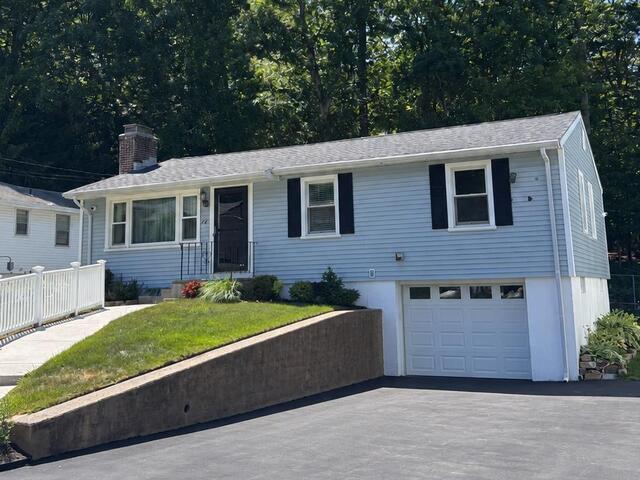

Completed Roof Replacement in New Haven, CT
The finished roof features IKO Dynasty architectural shingles in Granite Black, giving the home a refreshed appearance. With new decking, protective underlayment, and updated flashing, Henry and Connie's roof replacement is complete.
