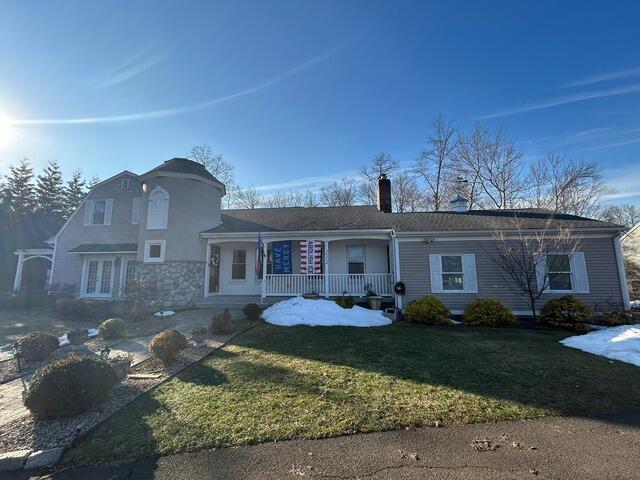

Before
Here is Peter's West Haven home before the transformation began. At 18 years old, the existing roof was showing its age and was ready for an upgrade. Follow along to see how the Brown Roofing team gave this home a beautiful new look!

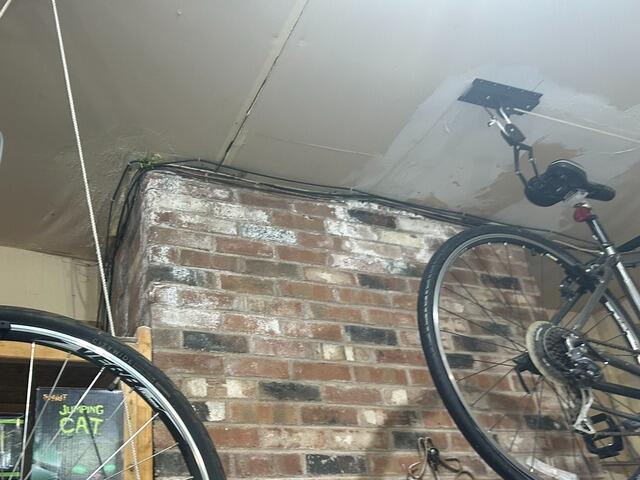

Interior Leak Inspection
Inspector Geoffrey began by evaluating the areas where Peter had experienced water intrusion. Here, visible staining and previous ceiling repairs around the chimney provided important clues as Geoffrey worked to identify the source of the leak.

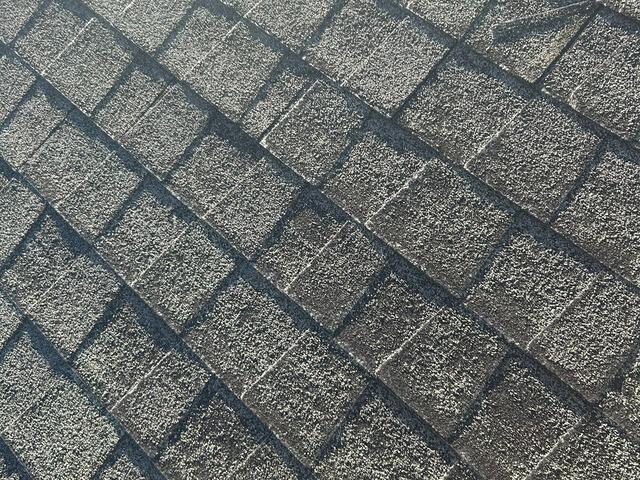

Granule Loss
Geoffrey also inspected the roof from the exterior, where he found significant granule loss across the aging shingles. As asphalt shingles age, their protective granules gradually wear away, leaving the roofing material increasingly vulnerable to the elements.

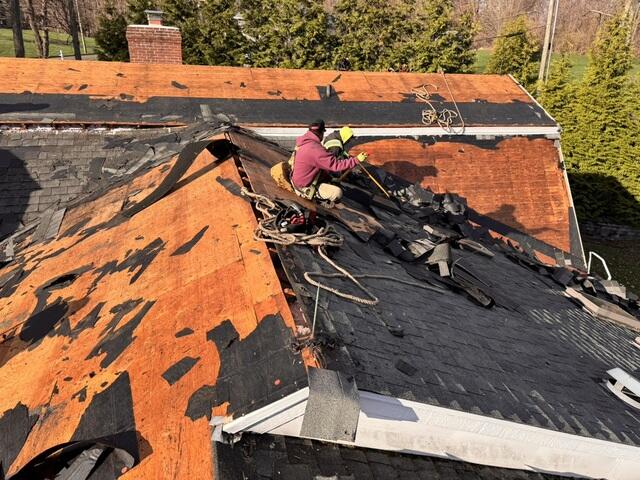

Tear-Off
With the inspection complete, our crew began removing the old shingles and roofing materials. This tear-off process exposes the plywood roof decking underneath and allows our team to evaluate the condition of the structure before installing the new roofing system.

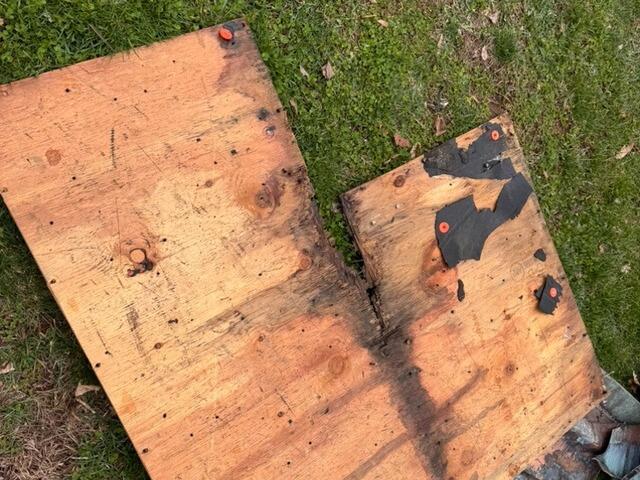

Damaged Plywood
Once the roof decking was exposed, our crew carefully inspected the plywood for signs of deterioration. This section showed significant moisture damage and organic growth, making replacement necessary before the new roof could be installed.

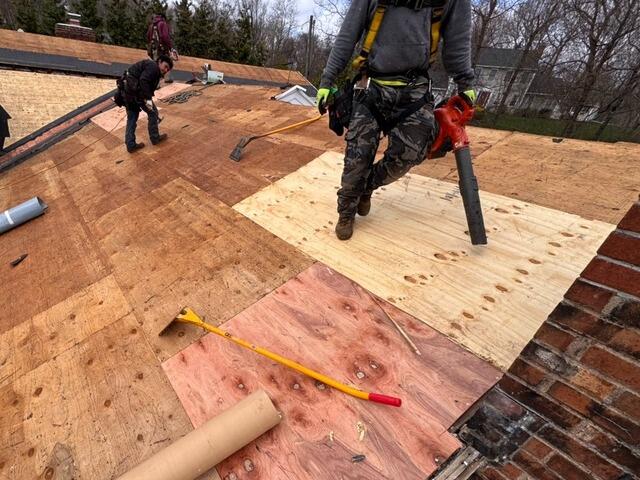

New CDX Plywood
Damaged sections of roof decking were removed and replaced with new CDX plywood. A solid, dependable deck provides the foundation needed to support the roofing materials above and ensure a long-lasting installation.

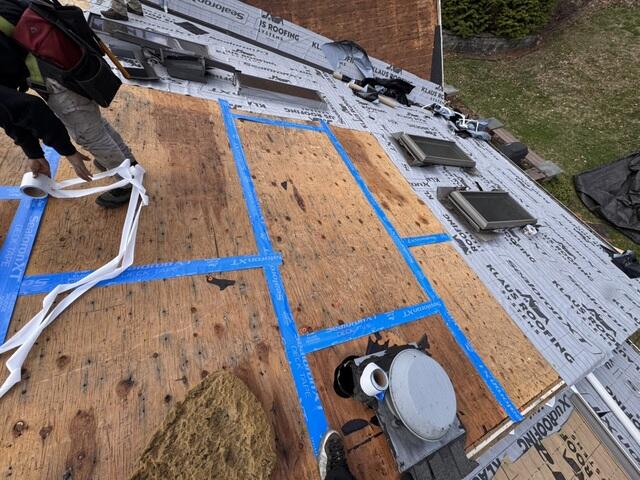

Waterproofing
Next, the seams between the plywood sheets were taped and ice and water shield was installed along vulnerable areas of the roof. This self-adhering waterproof membrane provides an additional layer of protection against water intrusion, particularly during ice damming and severe weather.

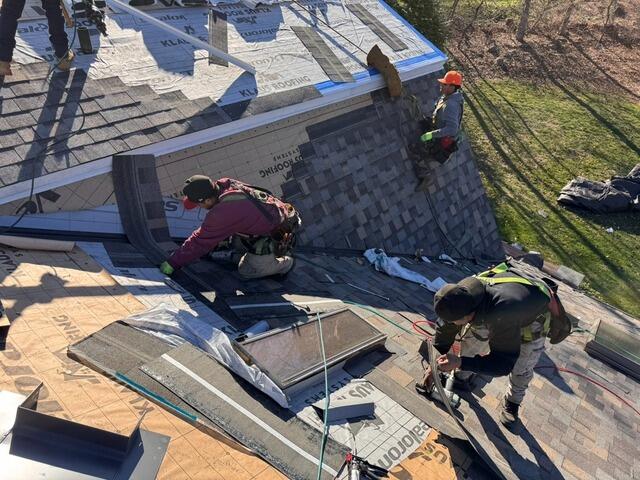

Cornerstone
Now for the transformation! Our crew began installing IKO Dynasty shingles in Cornerstone, a dimensional blend of charcoal gray, soft taupe, warm brown, and sandy tan. The varied neutral tones pair beautifully with Peter's beige siding and add plenty of depth and character to the exterior.

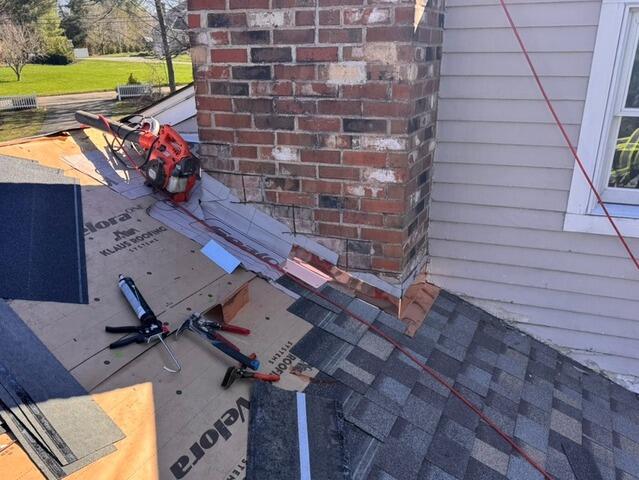

Copper
Peter chose copper flashing for the chimney, adding both dependable protection and a beautiful architectural detail to the new roof. Here, our crew carefully installs the copper around the base of the chimney to create a durable, watertight transition between the masonry and roofing system.

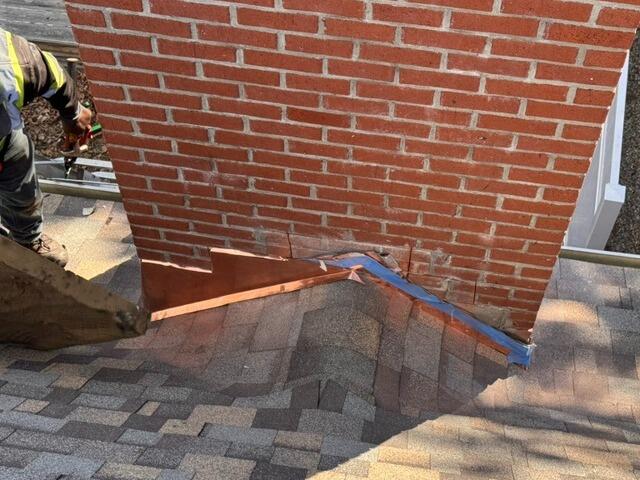

More Copper & a Cricket
Another chimney received new copper flashing, along with a cricket installed behind it. A chimney cricket helps divert rainwater and melting snow around the chimney rather than allowing it to collect against the masonry, helping protect this vulnerable area from water intrusion.

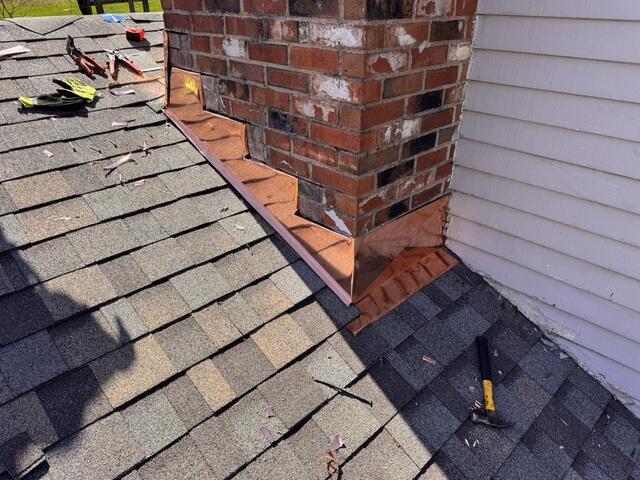

Finished Copper Flashing
Here is a closer look at the newly installed copper flashing around the first chimney. The carefully fitted copper creates a clean transition between the new Cornerstone shingles and the chimney while providing long-lasting protection against moisture.

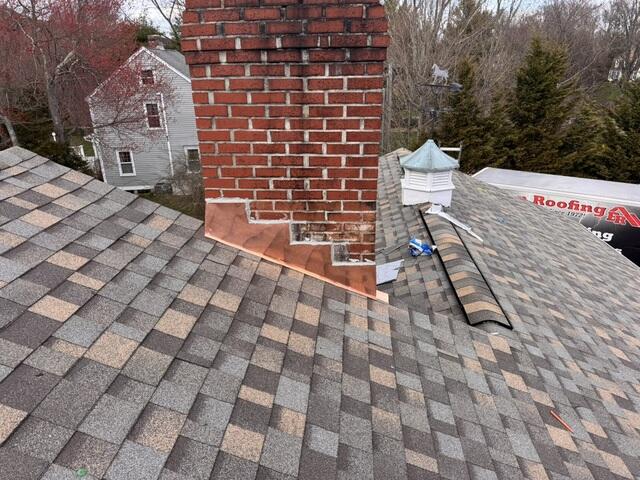

Caulk
With the copper flashing in place, the chimney was carefully sealed to complete the installation. Clean, precise sealant work helps prevent water from entering behind the flashing while giving the finished detail a polished appearance.

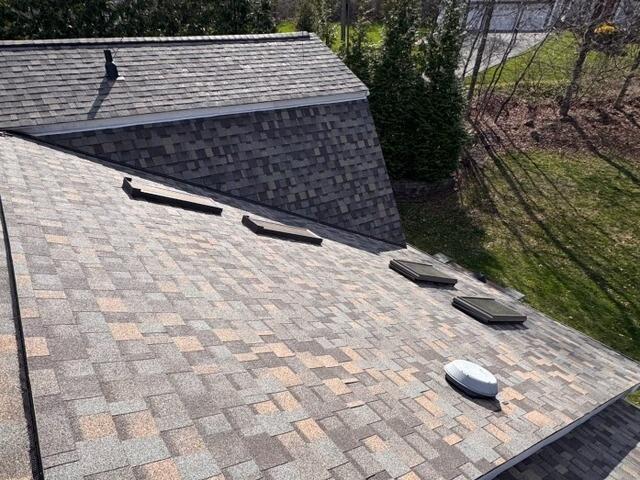

Roof Penetrations
Peter's roof includes several penetrations that require careful waterproofing, including four skylights, an attic ventilation fan, and a plumbing vent. Each penetration must be properly flashed and sealed to prevent water intrusion while allowing these features to function as intended.

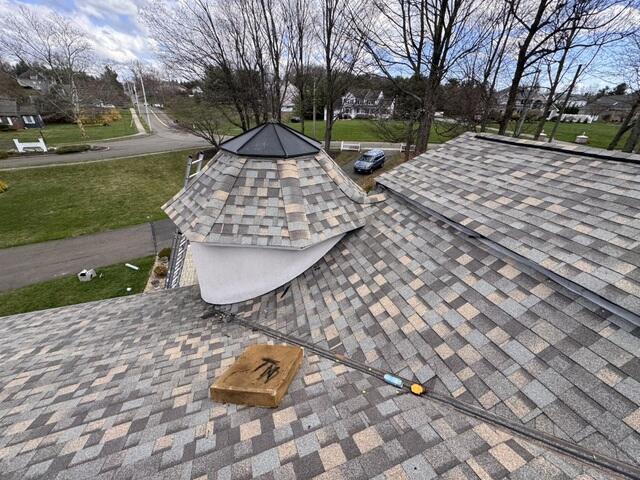

The Turret
One of the home's most distinctive architectural features is this polygonal turret, finished with stucco and topped by a standing-seam metal roof. The new Cornerstone shingles complement the darker metal beautifully while highlighting the unique shape and character of the home.

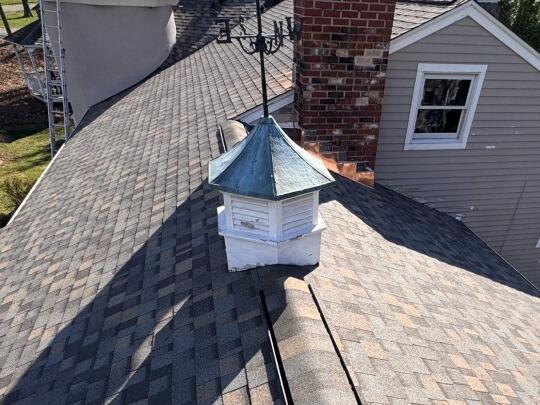

Cupola
Another unique feature of Peter's home is this cupola rising above the roofline. Traditionally used for ventilation and natural light, cupolas are now often incorporated as an architectural feature that adds character and visual interest to a home.

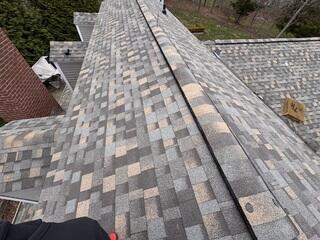

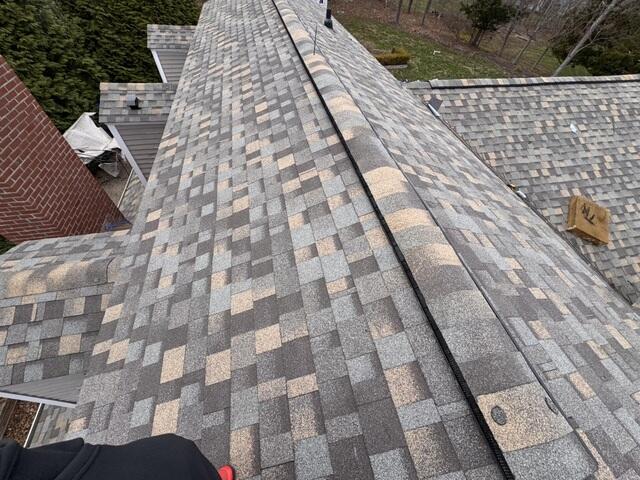

Ridge Vent
A ridge vent runs along the peak of the roof to support proper attic ventilation. It allows warm, humid air to escape from the attic while working with the home's intake ventilation to promote continuous airflow and help regulate heat and moisture.

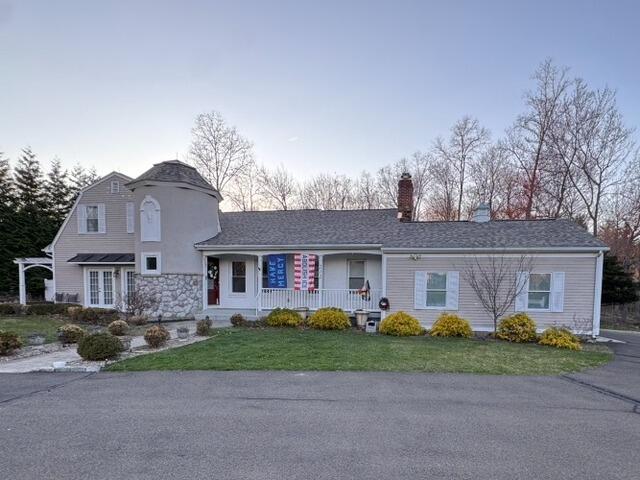

Finished Roof
And here is the finished transformation! Peter's new Cornerstone roof beautifully complements the exterior of his West Haven home, while details like the copper chimney flashing and unique architectural features make the finished project truly stand out. Most importantly, the new roofing system provides dependable protection from the elements for years to come. Brown Won't Let You Down!
