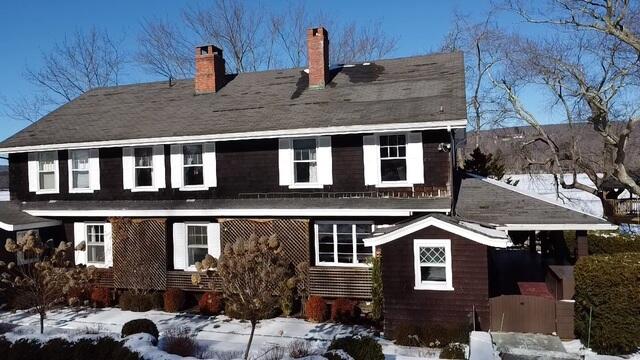

Before the Transformation
Here is a look at Christine's New Preston home before the roof replacement began. The aging roofing system was ready for an update, and with numerous upper and lower roof sections throughout the property, this would be a substantial transformation.

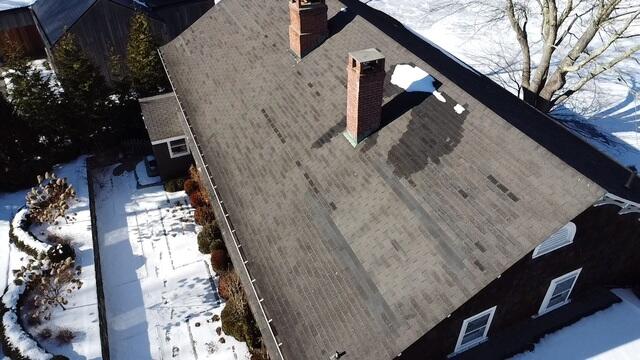

Missing and Aging Shingles
A closer look at the south-facing portion of the roof shows the existing three-tab shingles, including several areas where shingles were missing altogether. Missing and deteriorated shingles leave the underlying roofing system increasingly vulnerable to the elements.

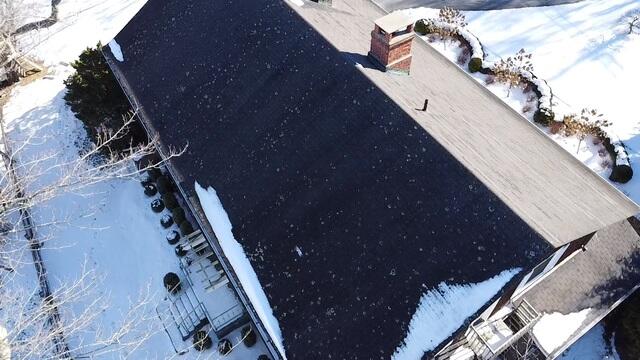

Algae and Lichen Growth
The north-facing side of the roof showed significant algae and lichen growth across the existing shingles. Because north-facing roof slopes typically receive less direct sunlight, they can remain damp longer and create favorable conditions for organic growth.

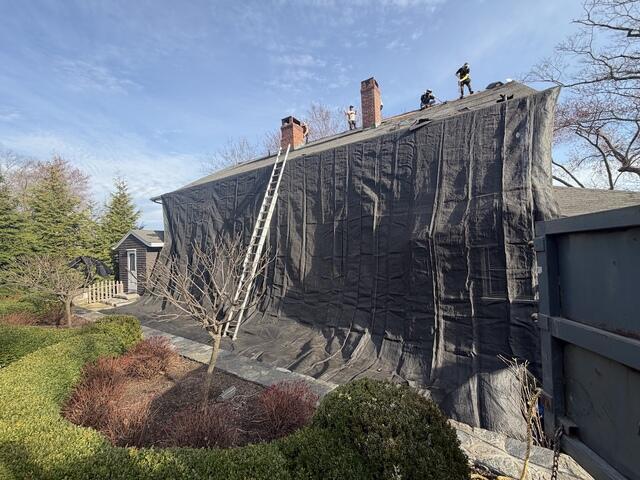

The Tear-Off Begins
With the surrounding property carefully protected by large tarps, our crew began removing the existing shingles and roofing materials. The tarps help contain falling debris while protecting the siding, landscaping, and areas surrounding the home.

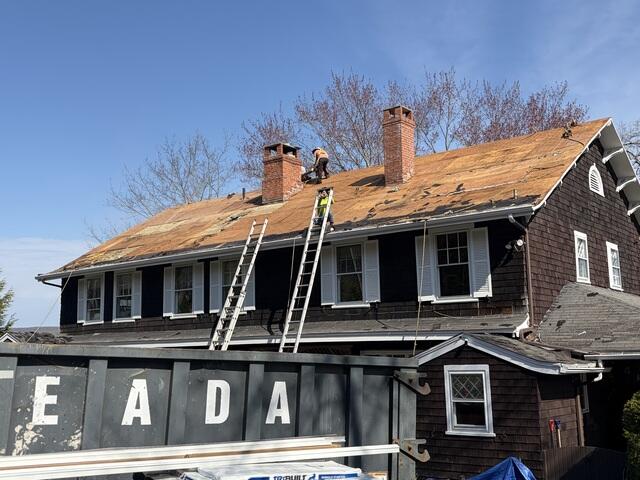

Inspecting the Roof Deck
Once the old roofing materials were removed, the plywood decking underneath was completely exposed. This gives our crew an opportunity to inspect the structural foundation of the roofing system and identify any compromised areas before installation continues.

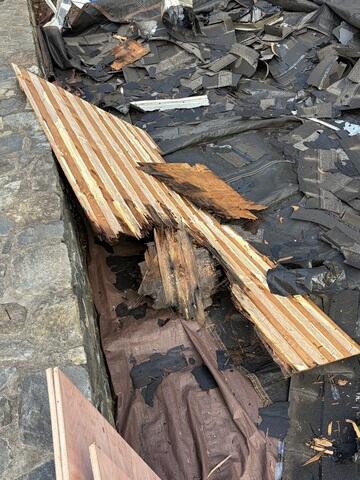

Removing Damaged Decking
Any sections of plywood showing significant deterioration or damage were removed before the new roofing system was installed. Starting with sound decking is essential for creating a strong, dependable foundation for everything that follows.

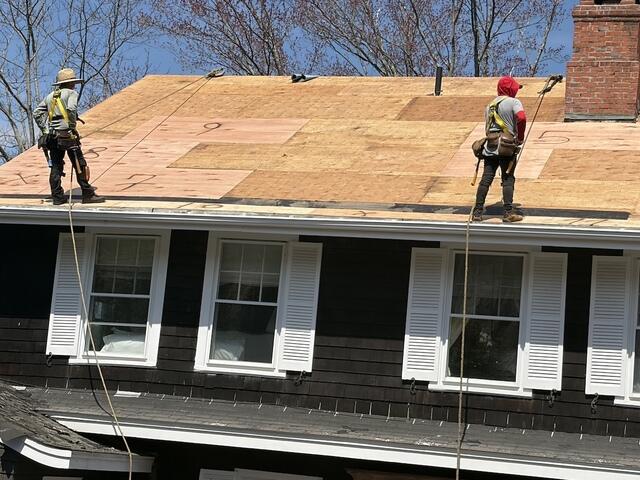

Installing New CDX Plywood
New CDX plywood was installed wherever the existing decking needed replacement. Each sheet is numbered as it is installed, allowing our team to accurately track and document the amount of decking replaced throughout the project.

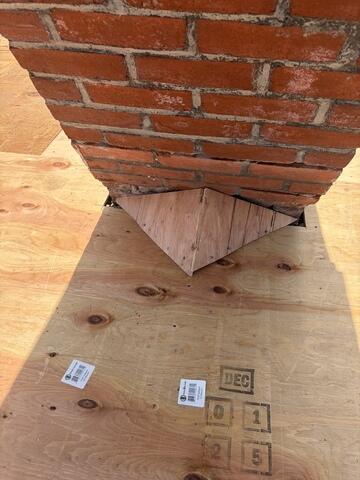

Building a New Chimney Cricket
A new cricket was constructed behind the chimney to help manage water as it travels down the roof. Its angled design directs rainwater and melting snow around the chimney rather than allowing moisture to collect against the masonry.

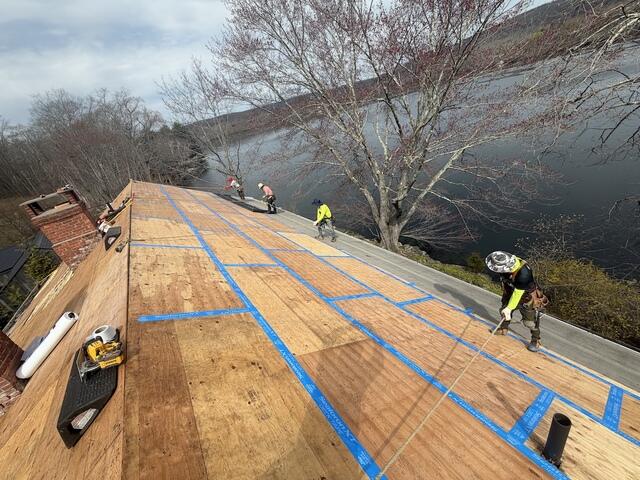

Waterproofing Vulnerable Areas
The plywood seams were taped in accordance with current installation requirements, and ice and water shield was applied six feet up from the eaves and along vulnerable areas of the roof. This self-adhering membrane provides additional waterproof protection beneath the finished roofing materials.

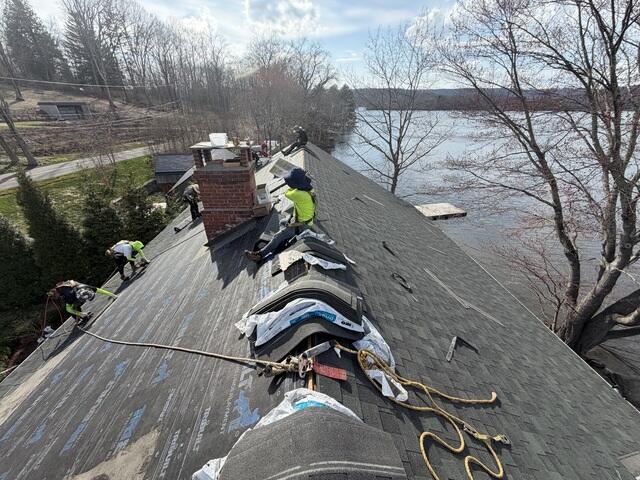

Installing Emerald Green Shingles
With the roof properly prepared, installation of the new IKO Dynasty shingles in Emerald Green began. This dimensional color combines subtle green and gray tones, creating a distinctive finished look that complements the natural surroundings of Christine's New Preston property.

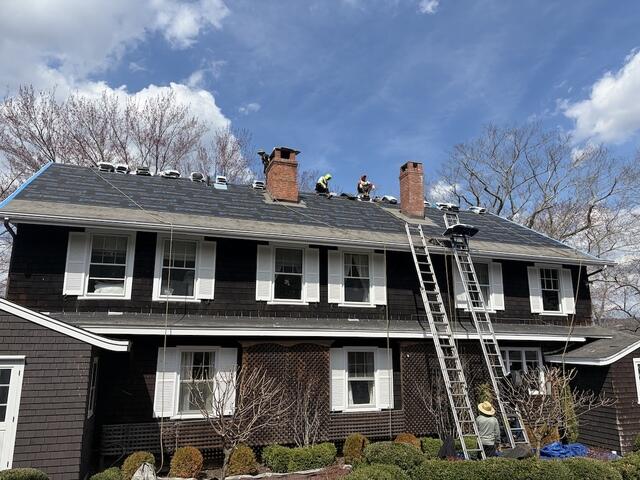

Adding Synthetic Underlayment
Synthetic underlayment was installed across the remaining roof deck to create another water-resistant barrier beneath the shingles. Together with the ice and water shield, it helps provide an additional layer of protection between the decking and finished roof.

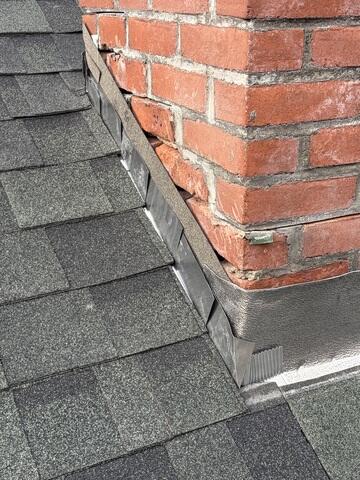

Flashing the Chimneys
New flashing was carefully installed where the chimneys meet the surrounding roofing materials. Proper chimney flashing creates a watertight transition at these vulnerable intersections and helps prevent water from entering the roofing system.

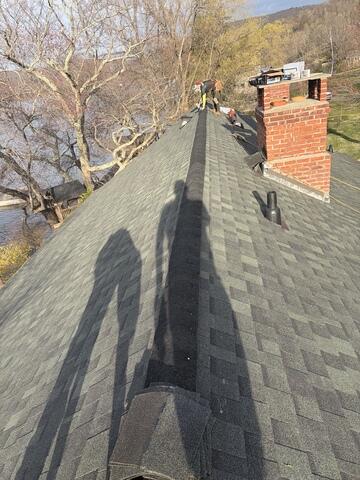

Improving Attic Ventilation
A new ridge vent was installed along the peak of the roof to support proper attic ventilation. Working with the home's intake ventilation, the ridge vent provides an outlet for warm, humid air to escape from the attic.

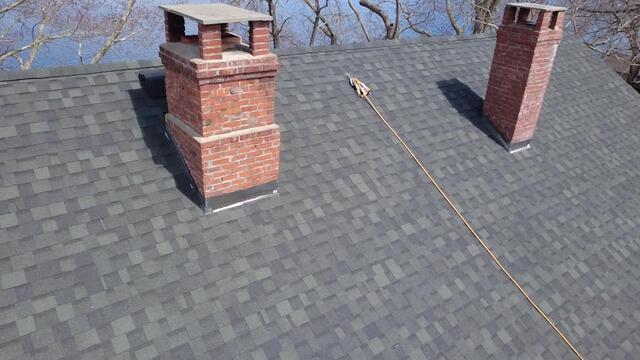

Completing the Chimney Details
Here is a closer look at the completed flashing surrounding one of the home's chimneys. Combined with the new roofing materials and chimney cricket, these carefully finished details help keep water moving safely away from the masonry.

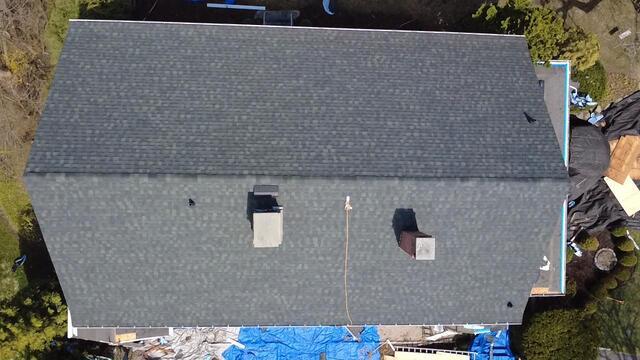

A Bird's-Eye View
From above, we get a great look at the completed upper roof and the many intersecting rooflines that make this home unique. The new shingles create a clean, cohesive appearance across each finished section.

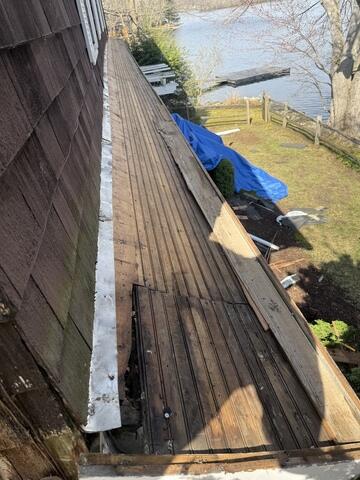

Moving to the Lower Roofs
On the second day of installation, our crew turned its attention to the home's numerous lower roof sections. After removing the existing materials from this area, the underlying lat-style decking was exposed so it could be evaluated and properly prepared for the new roofing system.

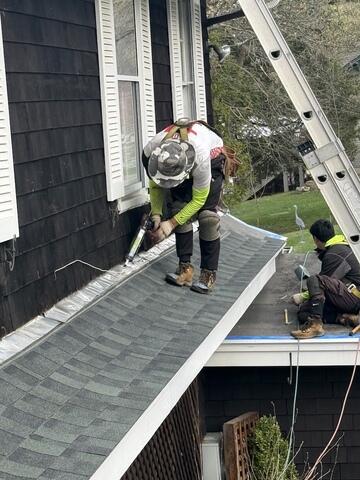

Protecting the Roof-to-Wall Transition
New flashing was installed where this lower roof section meets the adjacent wall. Roof-to-wall intersections are particularly important areas to protect, and properly installed flashing helps direct water away from the transition rather than allowing it to enter behind the roofing materials.

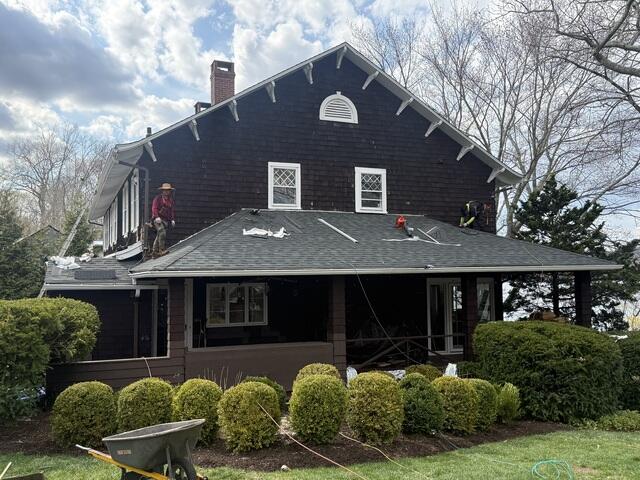

Matching Every Roof Section
The new IKO Dynasty shingles continue across the home's lower roof sections, creating a consistent appearance throughout the property. Using the same shingle color across the various rooflines helps tie this complex roofing system together beautifully.

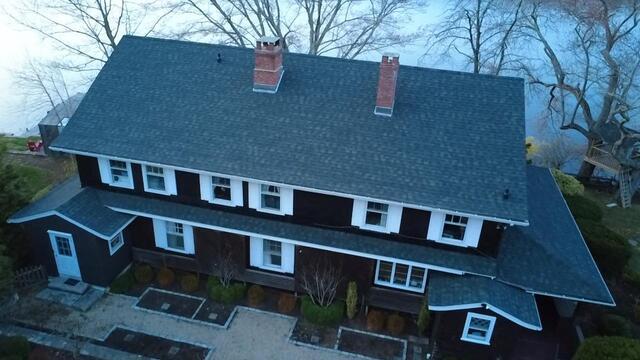

The Completed Roof From Above
With every upper and lower section complete, this drone view showcases the full scope of Christine's new roofing system. The finished roof brings all of the home's many rooflines together while providing updated protection throughout the property.

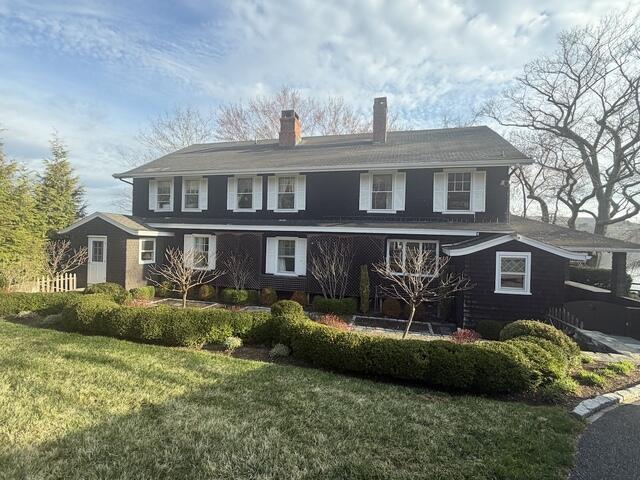

A Beautiful Finished Transformation
From the front of the home, the finished roof beautifully complements the character of the property and its surroundings. With new shingles, flashing, ventilation, decking repairs, and protective materials throughout, Christine's home is ready for years of dependable protection. Brown Won't Let You Down!
